AP1170 Alternate Separator

Postmark has released an alternate separator for the AP1170 to help improve consistent feeding

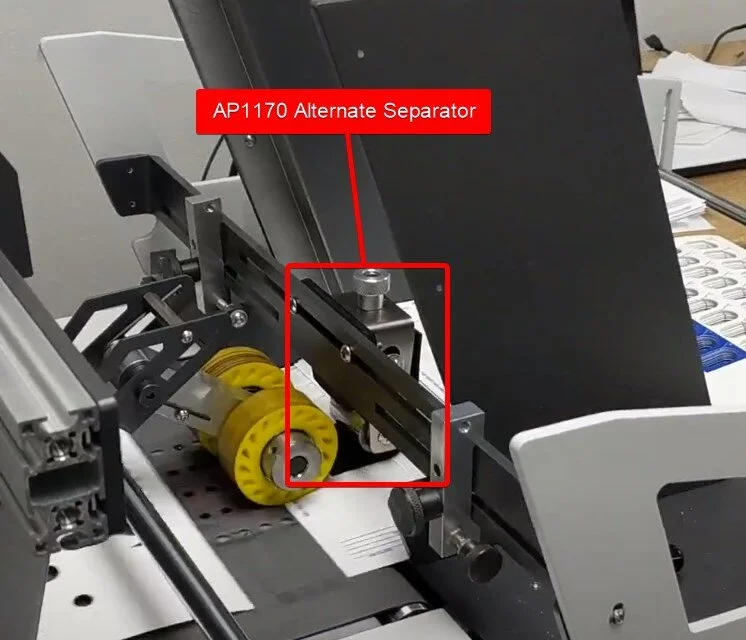

This alternate separator attaches to the AP1170 cross rail with two M6 screws as shown below:

This separator works by applying pressure to a silicon belt. It is important that the separator is not too tight as it could cause the separator to rub on the feed belt.

To increase downward pressure (if the feeder is double feeding or there is not adequate separation), tighten the top knob on the separator by turning it clockwise.

To decrease downward pressure (if there is too much force on the substrate or a thicker material is being used), loosen the top knob on the separator by turning it anti clockwise. If the separator continues to hold on to media after it reaches the yellow roller, either decrease downward pressure or increase the pressure on the yellow roller. The yellow pickup roller should be able to freely grab the media.
